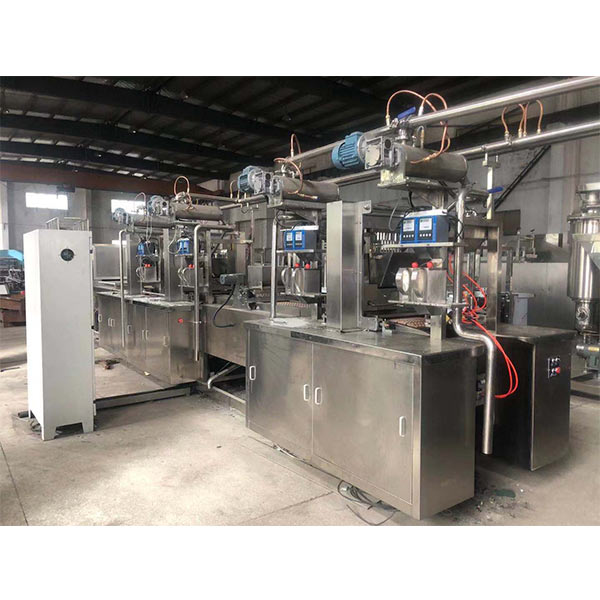

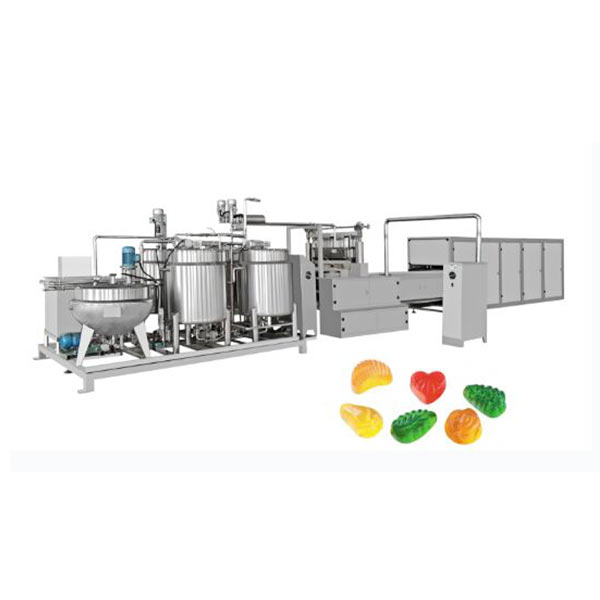

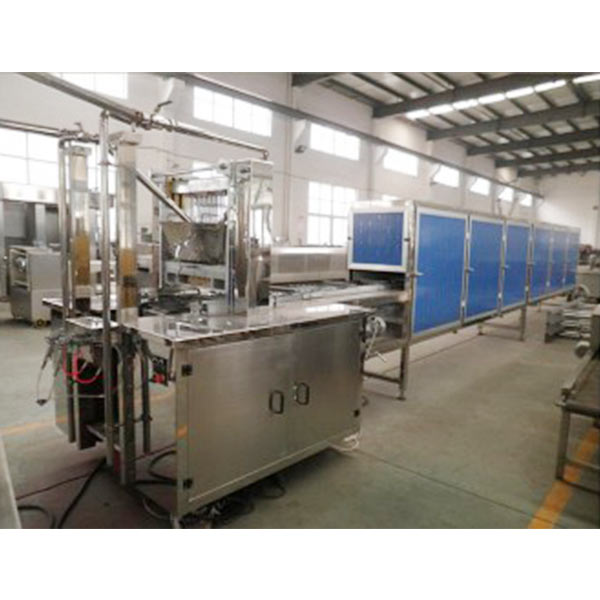

This is the depositing line, it is the main machine for candy,it is available for jelly candy
Jelly candy machine parameters
MODEL | SCKM150 | SCKM300 | SCKM450 | SCKM600 |
PRODUCTION CAPACITY | 150KG/H | 300KG/H | 450KG/H | 600KG/H |
WEIGHT OF EACH CANDY | MAX.15g | MAX.15g | MAX.15g | MAX.15g |
DEPOZITING TIMES | 30~45n/MIN | 30~45n/MIN | 30~45n/MIN | 30~45n/MIN |
STEAM(CONSAMPUTION) | 250KG/H | 400KG/H | 600KG/H | 800KG/H |
STEAM(PRESSURE) | 0.2MPA~0.8MPA | 0.2MPA~0.8MPA | 0.2MPA~0.8MPA | 0.2MPA~0.8MPA |
COMPRESSED AIR(CONSAMPUTION) | 0.2m³/H | 0.4m³/H | 0.6m³/H | 1m³/H |
COMPRESSED AIR(PRESSURE) | 0.4~0.6MPA | 0.4~0.6MPA | 0.4~0.6MPA | 0.4~0.6MPA |
TEMPERATURE | 20℃~25℃ | 20℃~25℃ | 20℃~25℃ | 20℃~25℃ |
HUMIDITY | 55% | 55% | 55% | 55% |
TOTAL | 15KW/380V | 28KW/380V | 46KW/380V | 50KW/380V |
LENGTH OF THE PRODUCTION LINE | 16M | 20M | 22M | 22M |
Process:
Melting->Sugar Storage->Cooling->Depositing->Cooling->De-moulding->Packing
1. Sugar Melting Tank: For melting sugar material and keeping temperature.
2. Syrup Storage Tank: For Storing syrup and Filtering pure syrup.
3. Depositing Machine: It is the main part of this line, it forms various kinds of soft candy by using different molds.
4. Cooling Cabinet: For cooling candy before packing, let candy in shape.
Comments:
1.Capacity can be 150/300/450/600KG per hour.
2.We can customize two depositing heads and three heads, if the candy is three colors or layers candy.
3.It is with servo motor , PLC controller, water cooling or air cooling.
4.We also will support you on recipe for your market.
5.Heating system option:Electricity,Steam,Induction.
Sample
