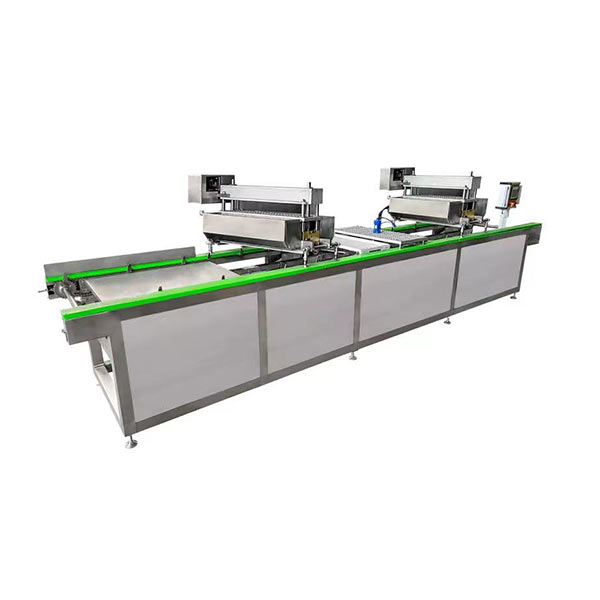

Starch mogul candy machine

This is the servo system depositing line, it is the main machine for candy,it is available for jelly candy

Parameter:

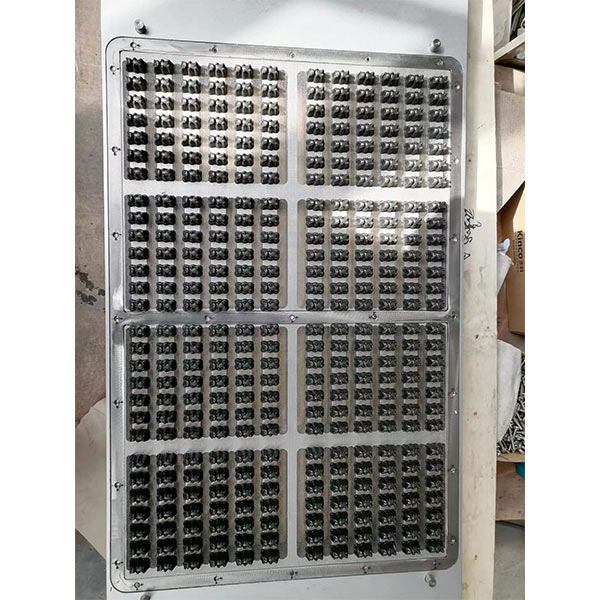

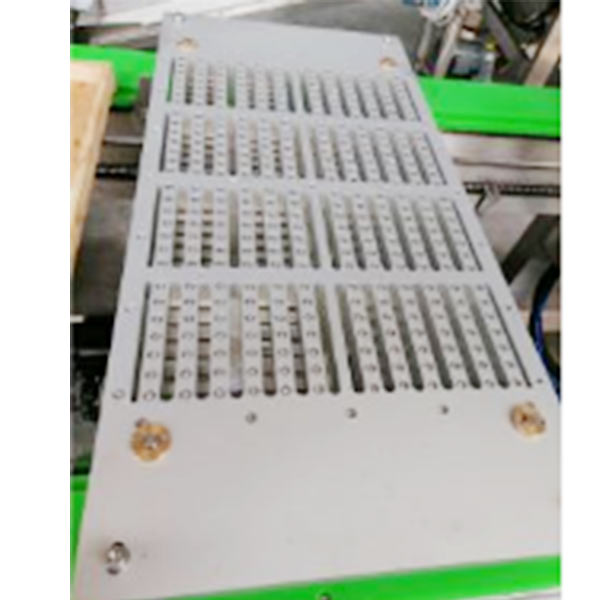

A.Stamping mould: 1set, Depositor 2sets, Filling plate 2sets

B. Capacity:400-800kg/h as per candy size

C.Deposit speed: 5-15 trays per min

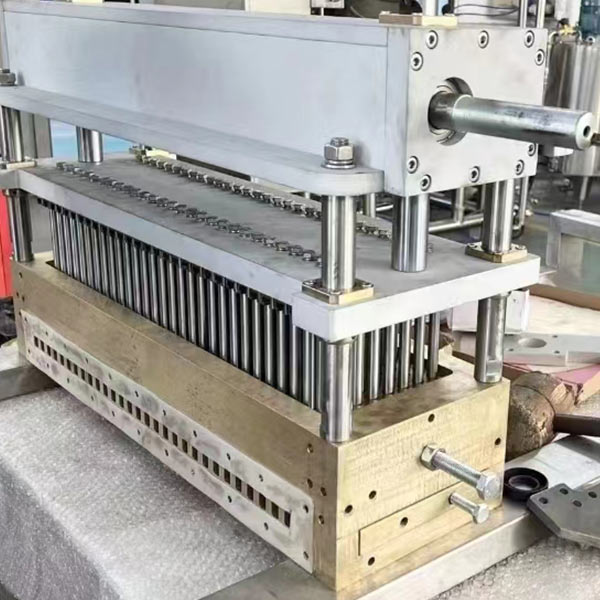

D.Servo controlled depositor with two hoppers

E.Depositor with 240pcs filling nozzles (Max)

F.Wooden tray size: 620x400mm

G.Total electrical power: 30kw

H.Air compressor required: 0.6-0.8MPA,  03.M³/MIN

I.Workshop temp. Required: <25°

J.Machine made of SUS304 material (except standard parts)

K. Machine use PLC and touch screen control system

L.Machine dimension: 5300X1700X2350MM

M.Total machine weight: 3000kg

ELECTRICAL PARTS :

1.Main motor ABB brand, electrical parts ABB brand

2. PLC use MITSUBISHI brand

3. Inverter use Danfoss brand

4. touch screen use KINCO brand

5. Servo motor use Taiwan TECO brand

6. Voltage: as per Customer requirement

7. Working Environment/ ：T 23～26℃，humidity< 50%。

Comments:

1.Capacity can be 300/600KG per hour.

2.We can customize two depositing heads and three heads, if the candy is three colors or layers candy.

3.It is with servo motor , PLC controller, water cooling or air cooling.

4.We also will support you on recipe for your market.

5.Heating system option:Electricity,Steam,Induction.

Sample：
