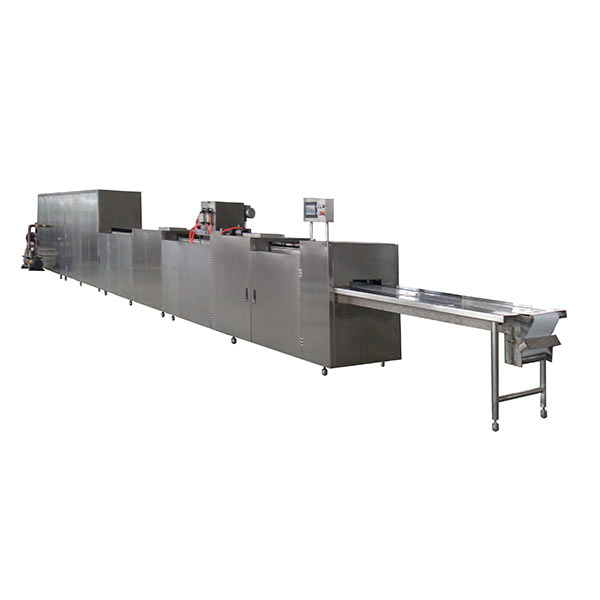

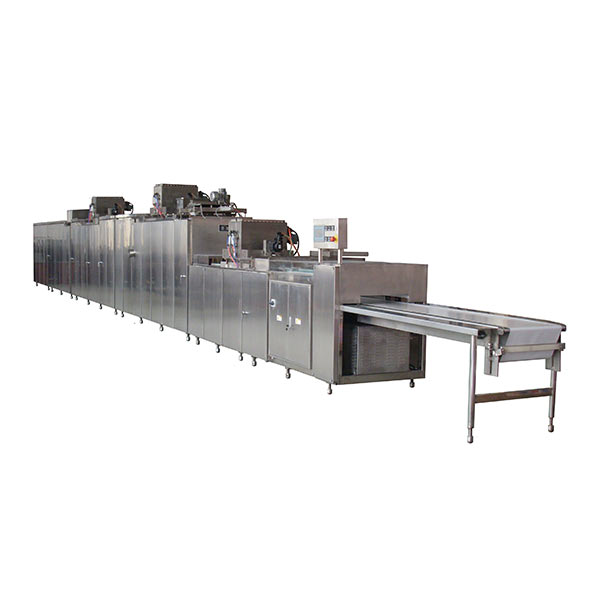

It is a full automatic chocolate moulding production line (chocolate making machine) .
MODEL | CHCOKM150(SINGLE HEAD) | CHCOKM300(DOUBLE HEADS) | CHCOKM500(TRIPLE HEADS) |
OUTPUT PER SHIFT | 1.5~3.0TONS/SHIFT | 1.5~3.0TONS/SHIFT | 1.5~3.0TONS/SHIFT |
WEIGHT OF EACH CHOCOLATE | 0~600G | 0~600G | 0~600G |
DEPOZITING SPEED | 8~15MOULDS/MIN | 8~15MOULDS/MIN | 8~15MOULDS/MIN |
TEMPERATURE IN COOLING TUNNEL | 5~10℃ | 5~10℃ | 5~10℃ |
STEAM(PRESSURE) | 0.5MPA~0.8MPA | 0.5MPA~0.8MPA | 0.5MPA~0.8MPA |
COMPRESSED AIR(CONSAMPUTION) | 0.2m³/H | 0.25m³/H | 0.3m³/H |
COMPRESSED AIR(PRESSURE) | 0.4~0.6MPA | 0.4~0.6MPA | 0.4~0.6MPA |
WORKING ENVIRONMENTE TEMPERATURE | 22℃~25℃ | 22℃~25℃ | 22℃~25℃ |
HUMIDITY | 55% | 55% | 55% |
VOLTAGE | 380V/50HZ | 380V/50HZ | 380V/50HZ |
TOTAL ELECTRIC POWER | 28KW | 32.5KW | 43KW |
DIMENSIONS | 16000x1500x2000MM | 19000x1100x1800MM | 45000x1200x2200MM |
Process:
Melting the raw materials-Moulding-Demoulding
1.Fat Melting Tank:Used for melting cocoa butter.
2.Chocolate Conche:Used for conching and refining chocolate paste.

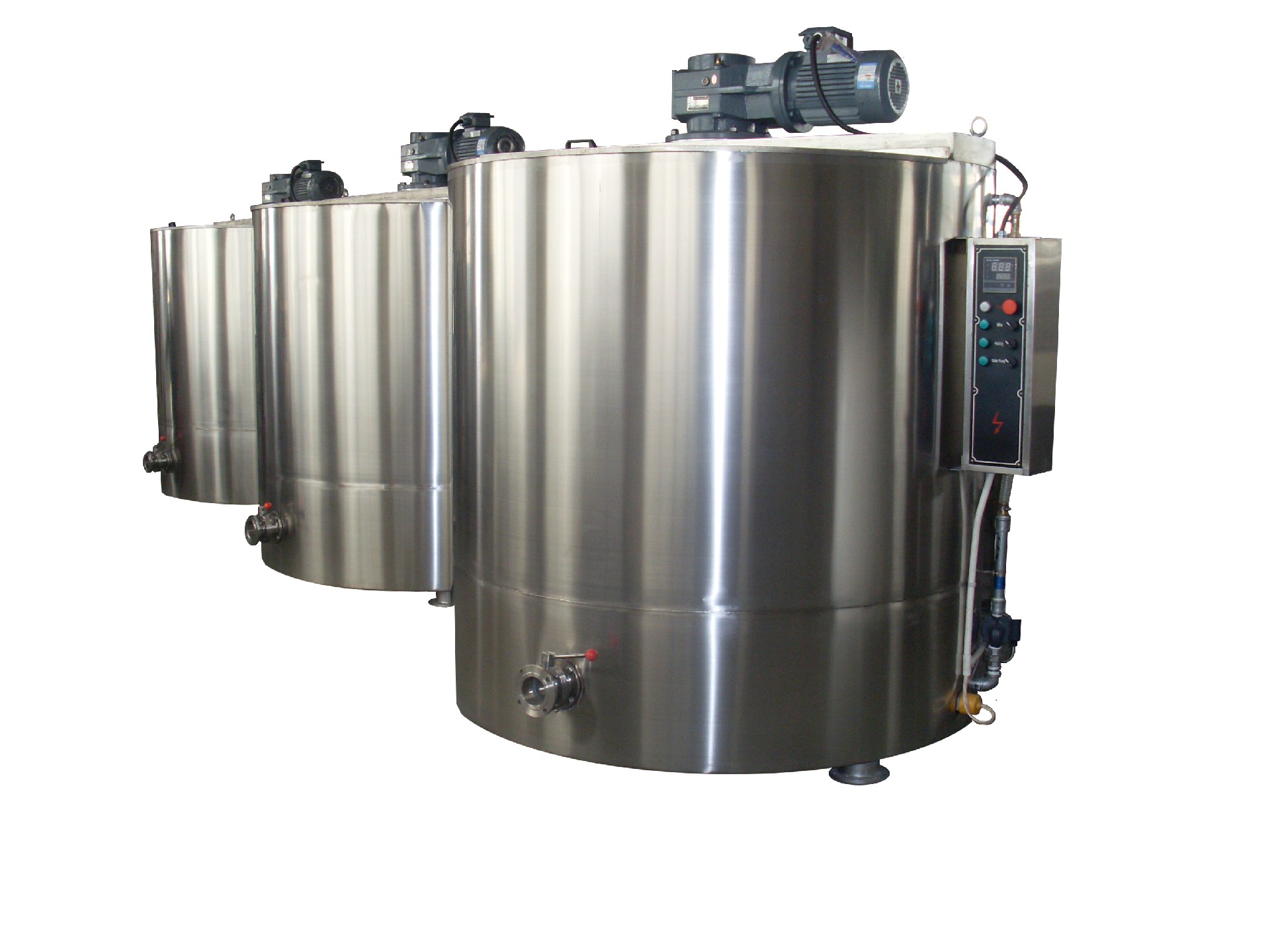

3.Storage tank:Used for temperature preserving and stirring of the refined chocolate pastes so as to dehydrating and eliminating peculiar smell.

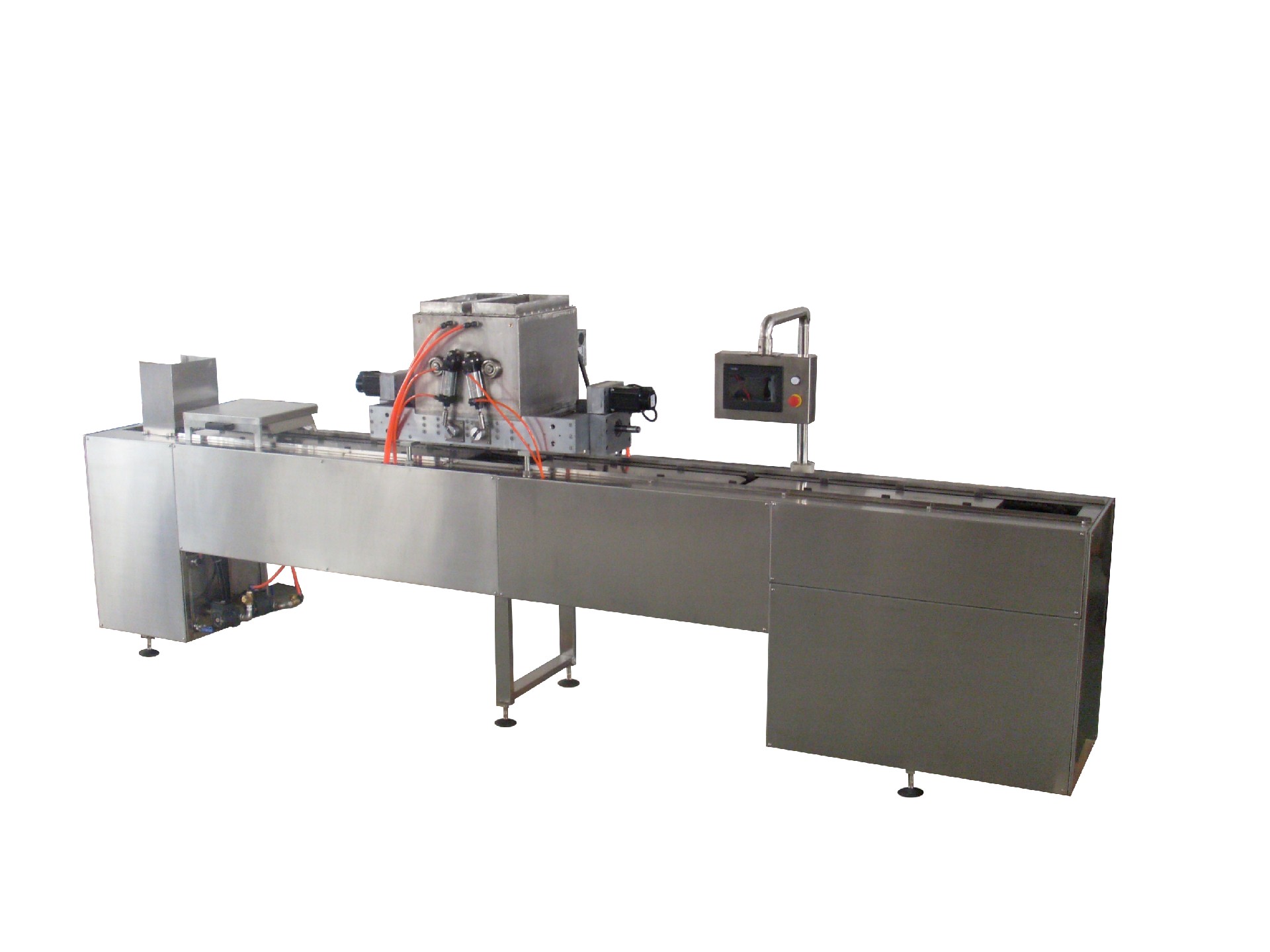

4.Deposting Machine:This machine has fully automatic functions of moulds pre-heating/baking, depositing, moulds vibrating, cooling, de-molding and conveying. It can be used for the production of sole-flavor, central filling, and two colors (left and right) chocolates.
Comments:
1.It is an automatic chocolate processing machine.
2.We make this line configuration according to the shape and weight of the chocolate and capacity for one hour.
3.It can be one and two depositing heads.
Main application:
this aircraft is suitable in each kind contains filling the chocolate special purpose equipment, it may pour the single color. Contains filling the chocolate and the broken kernel contains filling the chocolate: The collection baking the mould, casting, vibrating mould, cooling, conveying in body's multi-purpose casting machines.
This machine has the quantitative precision (each piston rod are used import seal, each are inlaid stainless steel piston set outside the rod), photoelectric control casting, electrical heating mode, automatic climate control, hot water circulation. It is suitable for the factory which has many varieties and large production capacity.
Materials:
All parts contact with food are made by stainless steel 304 or food grade PU belt, machine frame shrouding with stainless steel 201.
Features &Advantages:
PLC Control
Delta brand PLC and touch screen
Automatic pneumatic depositing
Copeland compressor
Sample:
