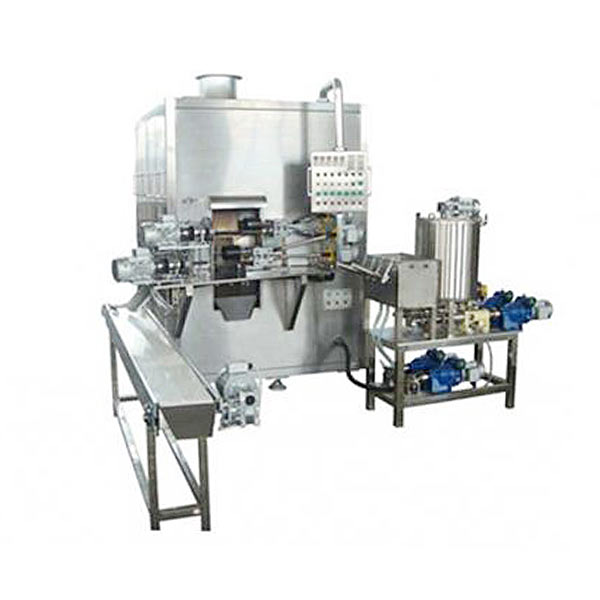

Egg roll machine

Automatic egg roll machine is using an new generation which is adopted the latest Japanese technology ,its combined by one material mixer , one baking machine,two pumping machines , two filling machine and conveyorMainly working on chocolate machine/candy machine/biscuit making machine/bakery machine/packaging machinery solutions abroad

Products Inquiry

Name :

Tel :

Email :

Message :

PRODUCT INFORMATION

Process:

Prepare raw material-Forming and cutting

1.Beating Machine: It is used to make slurry, mixing the material regularly, so that it could make the delicious flavor.

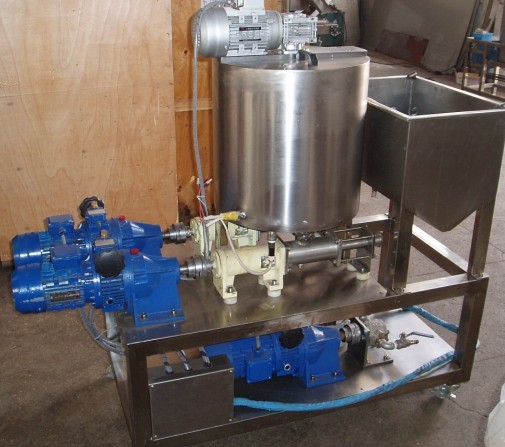

2.Pulp Sending Machine (Ball miller):It is used to hang up slurry to the drum of baking machine and feed the cream or chocolate cream into rolled stick.

3.Egg Roll Machine:It is used o bake the dough strip and roll the strip into stick and cut into required size. This machine with stainless steel .It has two kinds way of heating. One is the gas heating, the other is the electric heating.

Details Of The Machines:

Model	Hollow-core	Filled-core
Capacity	25-30kg/h	50-60kg/h
Gas consumption	LPG:4-4.5kg/h, natural gas:8-10m3/h	LPG:4-4.5kg/h, natural gas:8-10m3/h
Weight	3000KG	3000KG
Dimension (LWH)	250018002300mm	250018002300mm

Comments:

It consists of:

Drum, forming equipment, cutter, ignition module, main transmission,

Drum material: heat-resistant cast iron

Dimension of drum: ø1800mm

Amount of gas burner: 6

Sample:
